According to the weaving type, polyester forming fabrics can be divided into 4-shed, 5-shed, 8-shed, 16-sehd, 24-shed etc.
According to the category, it can be divided into single layer fabric, double layer fabric, two-and a half layer fabric and three-layer fabric.
4-shed and 5-shed series single layer fabric is standard type of polyester forming fabric in paper making, mainly used for producting cultural paper( single glue, double glue and color glue), printing paper, glazed paper, packing paper, common newsprint and so on. Suitable for common fourdrinier paper machine.
8-shed single layer fabric is suitable for producing the packing paper which be requested with big quantity, like kraft paper, cardboard, corrugated paper and so on. Also could be used for producing common printing paper. Suitable for common fourdrinier paper machine.
8-shed double layer fabric is suitable for producing quality printing paper which include dictionary paper, offset printing paper, newsprint and wrap paper. Also is could be used for producing tissu paper and the surface pulp, lining pulp, core pulp and bottom pulp of the board paper etc. Suitable for medium and high speed paper making machine.
16-shed double and a half layer fabric is suitable for producing quality printing paper, such as offset printing paper, copperplate paper, newsprint and cigarette paper series ( wrap paper and filter tips paper), also is could be used for producing toilet paper, tissue paper and surface pulp, lining pulp, core pulp and bottom pulp of the board paepr etc. Suitable for medium and high speed paper making machine.
Multi-shed three-layer SSB forming fabrics is suitable for producing quality printing paper, tissue paper and cigarette paper etc. Suitable for high speed paper making machine.

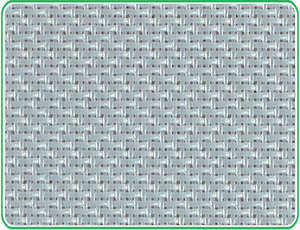

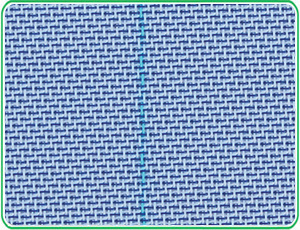

4-shed single layer fabric 8-shed single layer fabric 16-shed two adn a half layer fabric 20-sehd triple layer fabric | Weaving series&types | Model of Fabrics | Wire diameter (mm) | Density (wire/cm) | Strength (N/cm) |
Permeability (m³/㎡h) |
|
| Warp | Weftaralle | Warp | WeftWeft | Area of the Surface surface |
|
4-shed single layrer fabric | 27254 | 0.20 | 0.25 | 29 | 22 | ≥600 | 7500±500 |
| 27274 | 0.20 | 0.27 | 30 | 22.5 | ≥600 | 7600±500 |
| 31204 | 0.20 | 0.22 | 35 | 28 | ≥600 | 6500±500 |
5-shed single layer fabric | 27255 | 0.20 | 0.25 | 30 | 23 | ≥600 | 7600±500 |
| 27285 | 0.22 | 0.28 | 30 | 23 | ≥500 | 7800±500 |
| 31205 | 0.20 | 0.21 | 35 | 32 | ≥600 | 6700±500 |
8-shed single
layer fabric | 25358 | 0.22 | 0.35 | 28 | 19.5 | ≥700 | 9000±500 |
| 25408 | 0.22 | 0.40 | 29.5 | 19 | ≥700 | 8500±500 |
| 27358 | 0.22 | 0.35 | 29 | 20 | ≥700 | 8500±500 |
| 27408 | 0.22 | 0.40 | 31.5 | 19 | ≥700 | 8000±500 |
8-shed double
layer fabric | 56188 | 0.17 | 0.19/0.22 | 61.3 | 51.2 | ≥850 | 6800±500 |
| 60188 | 0.18 | 0.18/0.20 | 66 | 49 | ≥900 | 6000±500 |
| 62188 | 0.15 | 0.16/0.17 | 70.5 | 50.5 | ≥900 | 5700±500 |
| 16-shed two and a half layer fabric | 365016 | 0.28 | 0.20,0.27/0.50,0.50 | 37-38 | 31-32 | ≥1200 | 8500±500 |
| 424516 | 0.25 | 0.20,0.25/0.45,0.45 | 48-49 | 42-43 | ≥1250 | 8000±500 |
| 562516 | 0.18 | 0.13,0.18/0.25,0.25 | 57-58 | 46-47 | ≥1500 | 6500±500 |
| 563516 | 0.20 | 0.13,0.25/0.35,0.35 | 56-57 | 61-62 | ≥1500 | 7000±500 |
| 602516 | 0.18 | 0.13,0.20/0.25,0.25 | 62-63 | 55-56 | ≥1500 | 6200±500 |
| 603516 | 0.20 | 0.13,0.25/0.35,0.35 | 61-62 | 52-53 | ≥1500 | 6300±500 |
| 20-shed triple layer fabric | 563520 | 0.15,0.20 | 0.15,0.15/0.35,0.35 | 70 | 55 | ≥1600 | 5000±500 |
| 24-shed triple layer fabric | 364024 | 0.20/0.20 | 0.20,0.17/0.40,0.40 | 42 | 52 | ≥1600 | 6500±500 |
